Mobile C-ARM IITV X-Ray System Specification

Last Updated on : 10-1-2017

Mobile C-ARM IITV X-Ray System :

Salient Features -

- The C-arm Stand is Ruggedly Built with Self Balanced Movements.

- Wheels with Cable and Individual Front and back wheel Movement Controls Enable Speedy Lateral Travel and Ease of Positioning the Region of Interest under Cramped Working Conditions.

- It has Actuator Driven, Smooth and Noiseless up Down Movements.

- Manual Locking of Horizontal, Panning, Orbital and Rotational Movements.

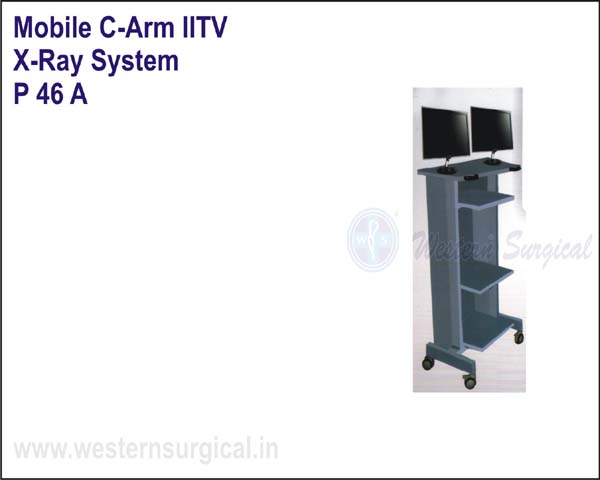

- Monitor Trolley is Sturdy and Sleek, with Specially Designed Multi Core Cable and easily Detachable Multi pin Connector.

Mobile C-ARM IITV X-Ray System Specification :

Technical Data GXL - D25 Mechanical Data
Type of Generator Full Wave Rectified (2 Pulse)  Vertical Motorized Travel : 400 mm.
Tube Head Type Monoblock Type Tube Head; Dual Focus X-Ray tube Horizontal Travel : 200mm
X-Ray Tube Focus Fluoro : 0.6 mm x 0.6 mm, Radio : 1.5 mm x 1.5 mm  Orbital Range : 115o (-25o to +90o)
Fluoroscopy KVP 40-100 KVP (in Step of 1 and 10)  Panning : ± 12.5o
Fluoroscopy mA 0.1 to 3.0 mA (Continuous) Rotational Movement : ± 180o
Fluoroscopy Timer 300 Sec. Cumulative Focus to II Distance : 900 mm
Radiographic KVP  40 - 100 KVP (in Step of 1 and 10)  Depth of C : 620 mm.
Radiographic mAs  2 to 200 mAs
Power Requirement 230V ; 50 Hz, 2.4 Kw ; 15 Amp.
Type of Image Intensifier 9" Image Intensifier with Triple Filed Image Capturing
CCD Camera High Power Optics, Sony make High Resolution CCD Camera
Image Display Unit (2 Nos) LCD Monitor for High Resolution image Quality
